Hexaflex® Specialty Graphite Foils represent a class of advanced carbon materials engineered for the most demanding thermal, electrical and chemical environments. The product line includes distinct high-performance grades: Omega, Omega TC+, Omega XT and Omega CP — each tailored for critical applications in industries such as semiconductors, solar energy, electrochemical storage and high-efficiency thermal management.

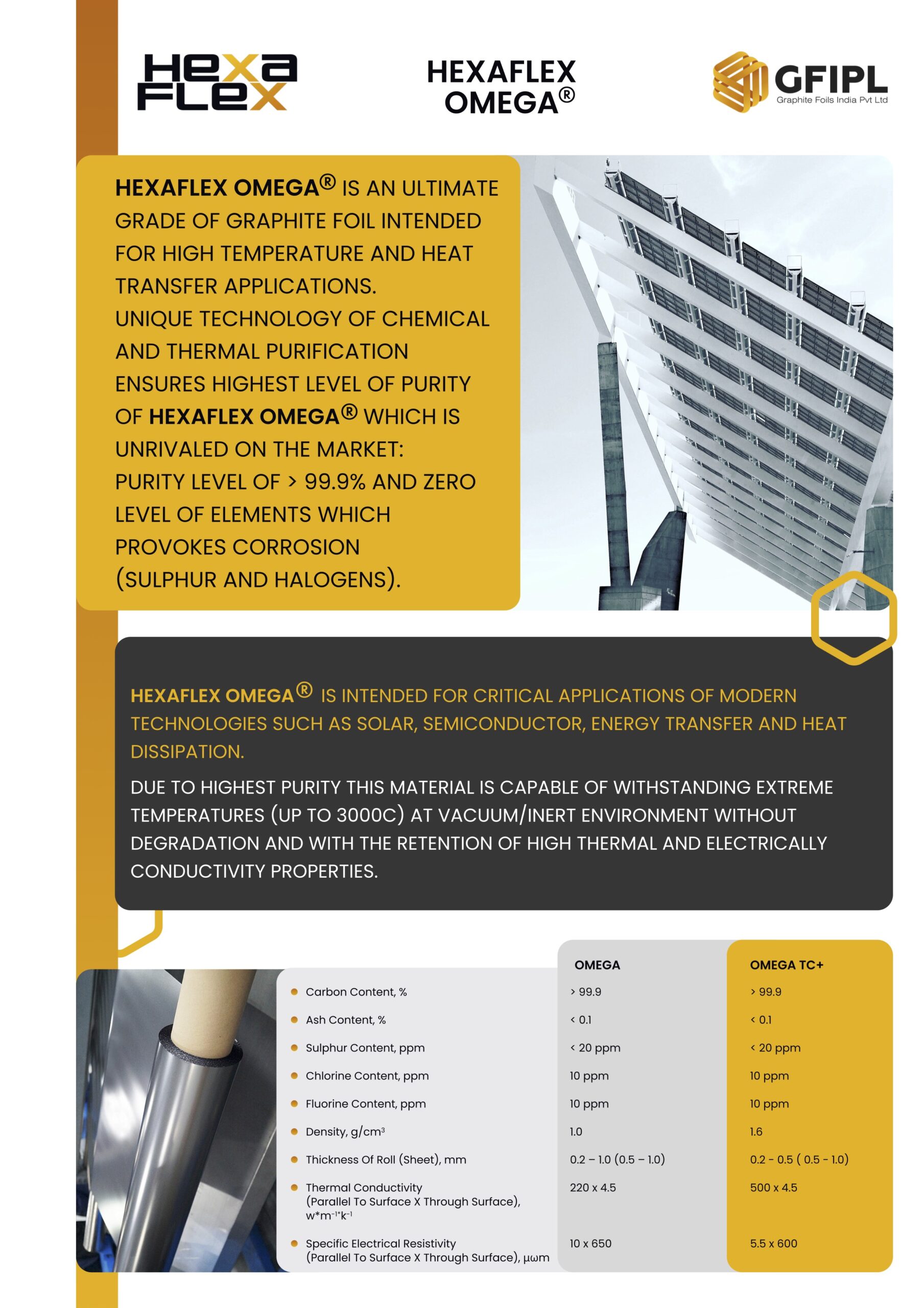

Hexaflex® Omega / Omega TC+
An ultra-high purity graphite foil with carbon content >99.9% and virtually no corrosive elements (sulfur, chlorine, fluorine < 20 ppm), made possible through proprietary thermal and chemical purification technologies. Hexaflex® Omega is engineered for extreme thermal environments (up to 3000°C in inert/vacuum atmospheres), maintaining excellent thermal conductivity and electrical performance. It is ideal for applications in solar panels, semiconductor manufacturing, advanced heat spreading and high-end electronics.

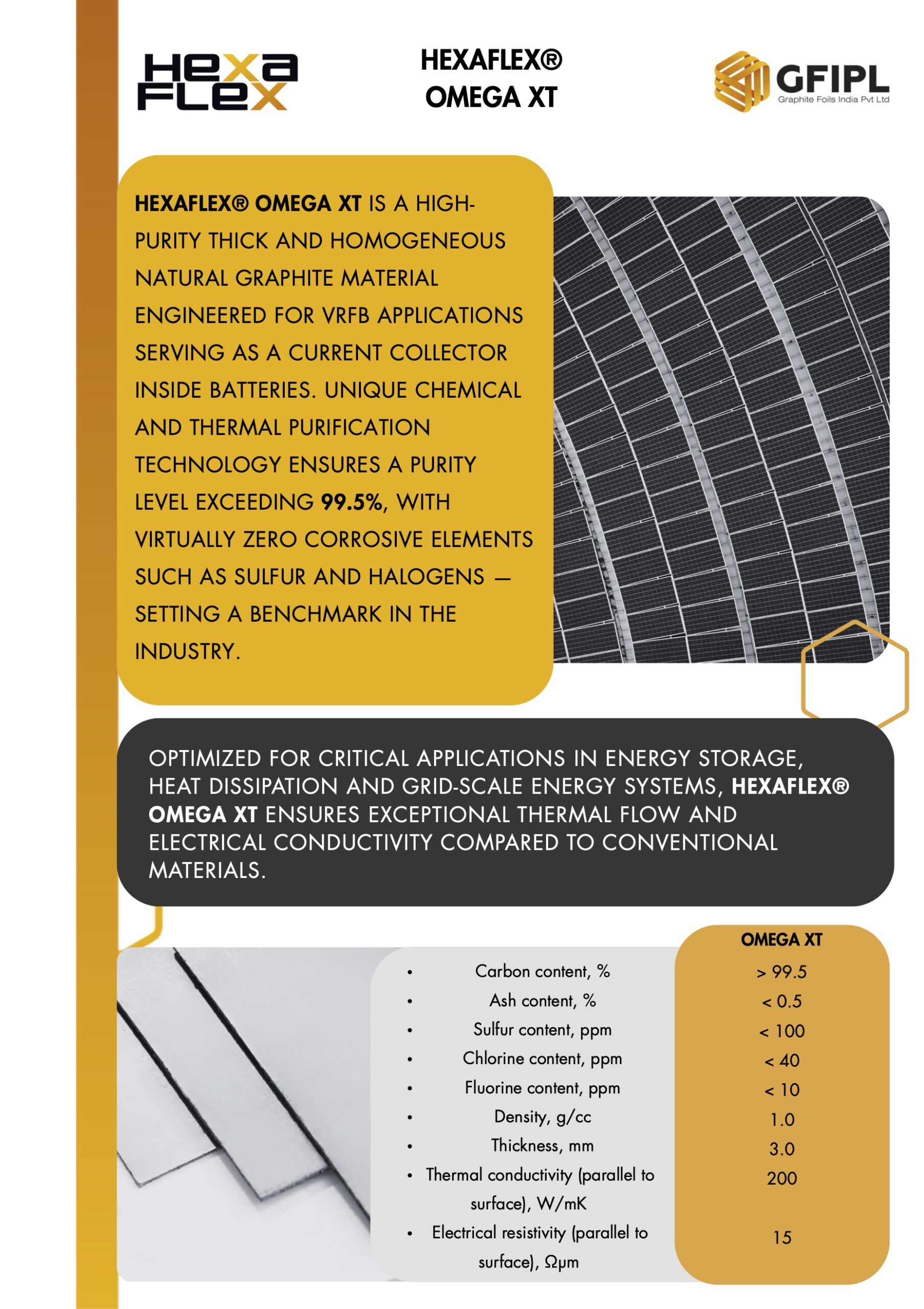

Hexaflex® Omega XT
A thick, homogeneous natural graphite foil with purity exceeding 99.5%, specifically developed for redox flow batteries (VRFB) and grid-scale energy storage systems. Omega XT offers superior thermal conductivity and low electrical resistivity, setting a benchmark in the market for energy transfer and dissipation. It is designed for chemically demanding environments, free from corrosive impurities, ensuring long-term stability and performance in next-gen battery systems.

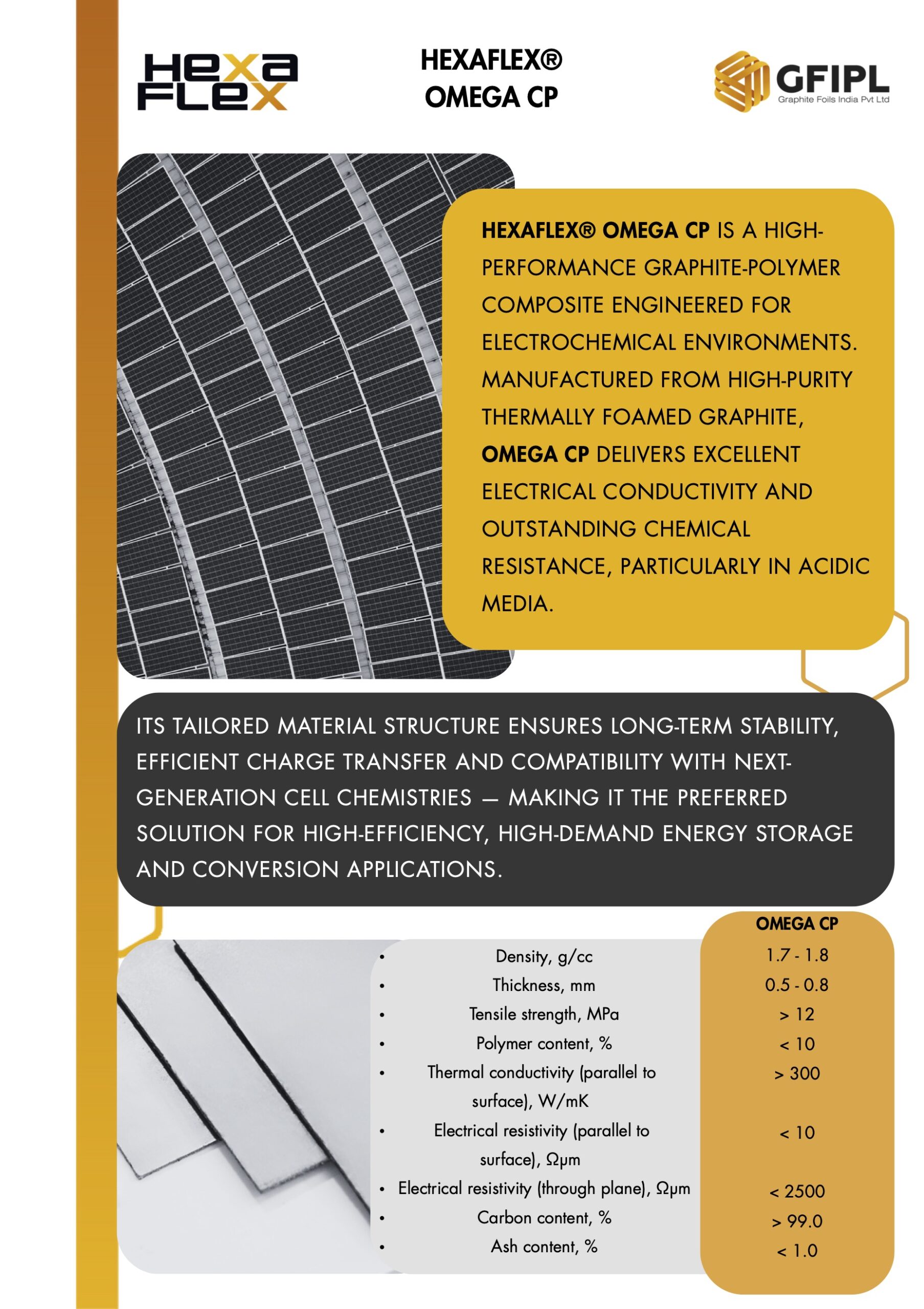

Hexaflex® Omega CP
A high-performance graphite-polymer composite optimized for electrochemical environments, Omega CP combines high conductivity with outstanding chemical resistance, particularly in acidic media. With tailored porosity and mechanical integrity, it ensures efficient charge transfer and durability in advanced energy conversion systems. Ideal for high-demand energy storage applications, Omega CP supports compatibility with emerging cell chemistries and maintains excellent performance under harsh operating conditions.
Key Benefits of Hexaflex® Specialty Foils
- Ultra-high purity carbon structure for unmatched stability
- Exceptional thermal and electrical conductivity
- Extreme temperature resistance without material degradation
- Excellent chemical resistance, even in acidic environments
- Custom-engineered solutions for cutting-edge applications in energy, electronics and industrial technologies
Download materials
HEXAFLEX OMEGA & TC+
HEXAFLEX OMEGA CP
